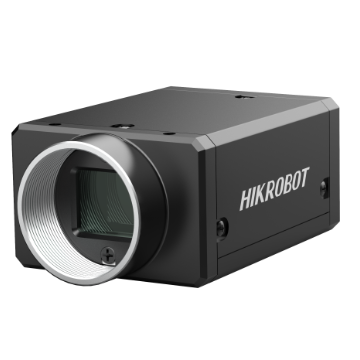

MV-CH250-90GM

5 0 reviews

exemplum:
MV-CH250-90GM
Notam product:
HIKROBOT
Sensoris exemplar:
GMAX0505
Consilium:
5120 5120
Data interface:
GigE
Nigrum et album / color:
nigrum et album
Maximum frame rate:
4.5 fps

publica;

quantitas;



consule Adde inquisitionem cophini

Features

25 million pixel solutionis, pixel size 2.5µm
Magnitudo compacta, apta ad C-montem lentes
Facilem et flexibilem institutionem escendunt in tabulis tam superioribus quam inferioribus camerae
Support LSC lens frondibus correptio
Sustinet Gigabit retis interface, maximum spatium transmissionis 100m sine cursore attingere potest
Compatible cum GigE Visionis V2.0 protocollo et vexillo GenlCam, seamlessly cum programmate partium tertiae coniunctae

altiore dimensionibus

MV-CH250-90GM3

exemplar	exemplar	MV-CH250-90GM
exemplar	nomen	25 decies centena pixel retis portu regio scan camera, GMAX0505, nigrum et album, V4
perficientur	Sensor type	CMOS, global Lorem
	Sensorem exemplar	Gpixel GMAX0505
	Pixel magnitudine	2.5 μm × 2.5 μm
	Scopum magnitudine	1.1'
	resolutio	5120 5120
	Artus rate	4.5 fps @5120 5120 Mono 8
	dynamic range	63 dB*
	Signum ut- sonitus ratio	36dB
	Lucrum	0 dB~ 24 dB
	Tempus expositionis	12μs~10sec
	Lorem modus	Patefacio latae sententiae sustentat, detectio manualis, et modus patefacio-click unum
	nigrum et album / color	nigrum et album
	Forma pixel	Mono 8/10/10Packed/12/12Packed
	Binning	Support 1×1,2×2
	downsampling	Support 1×1,2×2,4×4
	Speculum	Support horizontalem speculum et verticali speculum output
Characteres electrica	Data interface	Gigabit Ethernet (1000Mbit/s) compatible cum Fast Ethernet (100Mbit/s)
	Digital I/O	6-pin P7 iungo potestatem praebet et I/O: 1 optocouplerus solitarius initus (Line0), 1 output optocouplerus solitarius (Line1), 1 bidirectionalis configurabilis non solitarius I/O (Line2).
	powered by	9 ~ 24 V, supplet poE potestatem supplet
	Typical potentia consummatio	3.1W@12VDC
structure	Lens mons	C-mons
	altiore dimensionibus	29 mm x 44 mm 59 mm
	pondus	de C g *
	IP praesidium gradu	IP40 (quando recte lens vel funes installantur)
	temperatus	Temperatus operandi 0 ~ 50°C, repositio temperatus -30 ~ 70°C
	humiditas	20% ~ 95% RH non-condensing
Specificationes generales	software	MVS vel tertia pars subsidia GigE Visionis protocolli software
	operating ratio	Windows XP/7/10/11 32/64bits, Linux 32/64bits et MacOS 64bits
	Protocols / Standards	GigE Visio V2.0,GenICam
	Certification	CE,RoHS, KC
