MV-CH120-60UC

5 0 arotake

tauira:
MV-CH120-60UC
Waitohu hua:
HIKROBOT
tauira pūoko:
BSI tāpae
Whakatau:
4096 × 3000
Atanga Raraunga:
USB3.0
Pango me te ma/tae:
tae
Reiti tāpare mōrahi:
30.7fps

āhua:

rahinga:



korero Tāpirihia ki te kete pakirehua

Ngā āhuatanga

Te papaaa taputapu hou, nga rauemi arorau arotau, tino whakaitihia te kohi hiko
Ka tautokohia te whakarereke aunoa, a-ringa ranei mo te whiwhi, te wa whakakitenga, te toenga ma, LUT, te whakatikatika Gamma, me etahi atu, me te tautoko i te mahi pooti a Sequencer
Ko te kamera he taputapu CCM, SuperPalette me te SuperBayer, e whakarato ana i te kounga pai o te ahua
Ko te hoahoa hanganga ahua reanga hou e tautoko ana i te whakaurunga e wha-taha
He hototahi ki te kawa USB3 Vision me te paerewa GenICam, ka taea te hono pai ki nga papaaho rorohiko tuatoru

Te rahinga whanui

MV-CH120-60UM3

tauira	tauira	MV-CH120-60UC
tauira	ingoa	12MP USB 3.0 rohe karapa kamera, tae
mahi	Momo pūoko	CMOS, marumaru ao
	tauira pūoko	BSI tāpae
	Rahi pika	3.45 μm×3.45 μm
	Rahi whainga	1.1'
	whakatau	4096 × 3000
	Reiti anga teitei	30.7 fps@4096 × 3000 Bayer GB 8
	awhe hihiri	67.5 dB
	ōwehenga tohu-ki-haruru	44.2 dB
	Whiwhi	0 dB ~ 12 dB
	Te wa whakakitenga	45μs~10 hēkona
	aratau marumaru	Ka tautokohia te whakakitenga aunoa, te whakaaturanga a-ringa, me te aratau panui-kotahi
	pango me te ma/tae	tae
	Hōputu pika	Mono 8/10/12 Bayer GB 8/10/10Kiki/12/12Kikī YUV422Kikī,YUV422_YUYV_Kikī RGB8,BGR8
	Binning	Tautoko 1×1, 2×2, 4×4
	Te whakaheke	Tautoko 1×1, 2×2, 4×4
	whakaata	Tautokohia te whakaata whakapae me te whakaata poutū
Nga ahuatanga hiko	Atanga Raraunga	USB3.0, hototahi ki te USB2.0
	Mamati I/O	Ko te hononga P7 6-titi he whakarato hiko me te I/O: 1 optocoupler urunga taratahi (Raina0), 1 optocoupler putanga taratahi (Raina1), 1 arataki rua IO kore-taratahi ka taea te whirihora (Raina2)
	powered by	9~24 VDC, tautoko USB mana supply
	Kohi hiko angamaheni	2.4 W@5 VDC (USB 3.0 whakakaha)
hanganga	Maunga arotahi	C-Maunga

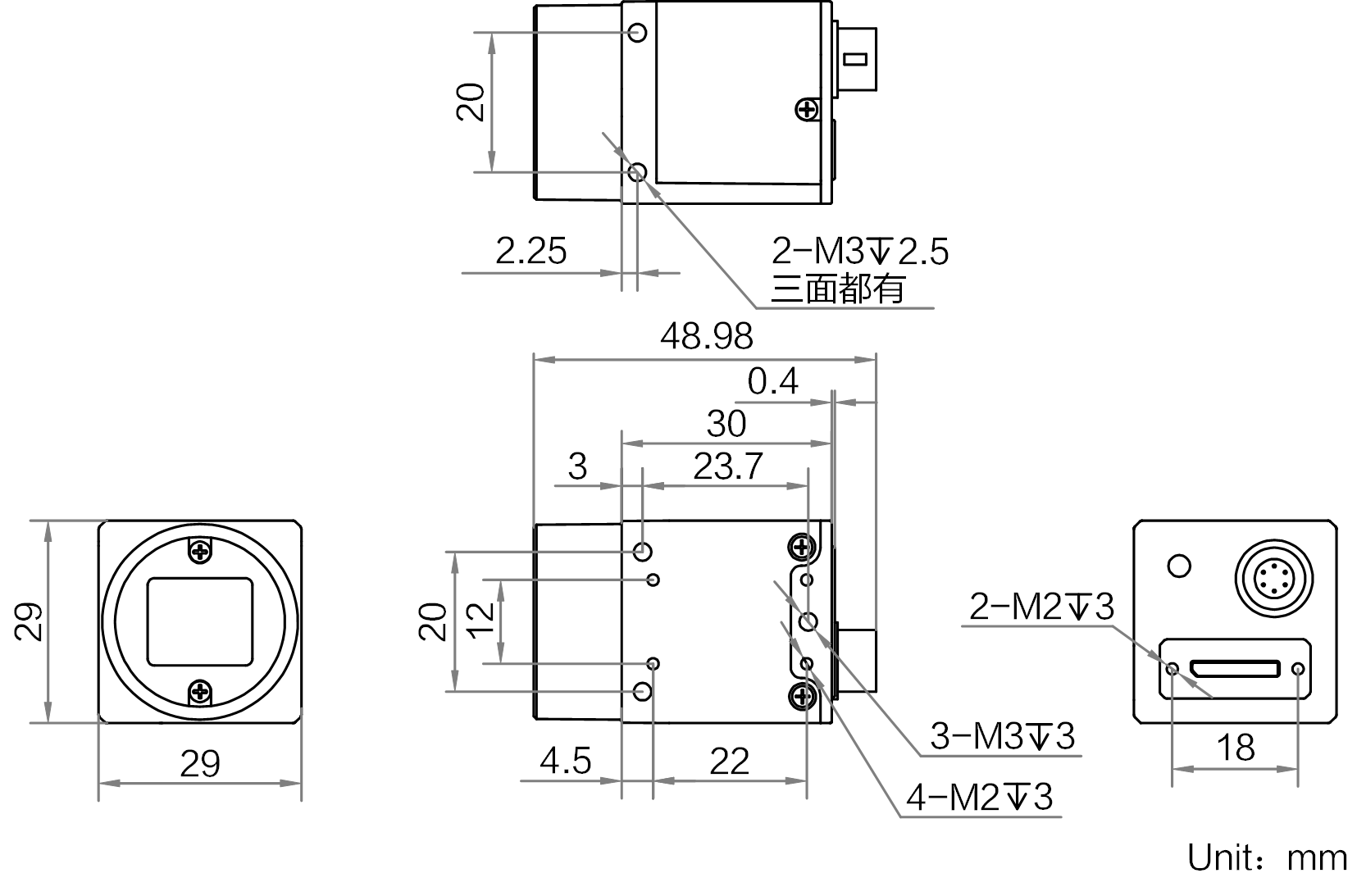

	Te rahinga whanui	29mm×29mm×30mm
	taumaha	tata ki te 80 g
	taumata tiaki IP	IP40 (ina he tika te whakaurunga o te arotahi me nga taura)
	pāmahana	Te pāmahana mahi -10 ~ 50 ° C, te pāmahana rokiroki -30 ~ 80 ° C
	haumākū	20% ~ 95% RH kore-condensing
Nga whakaritenga whanui	pūmanawa	MVS, he raupaparorohiko tuatoru ranei e hototahi ana ki te kawa USB3 Vision
	pūnaha whakahaere	Windows XP/7/10/11 32/64bits, Linux 32/64bits me MacOS 64bits
	Kawa/Paerewa	USB3 Vision, GenlCam
	Tiwhikete	CE,RoHS,KC
